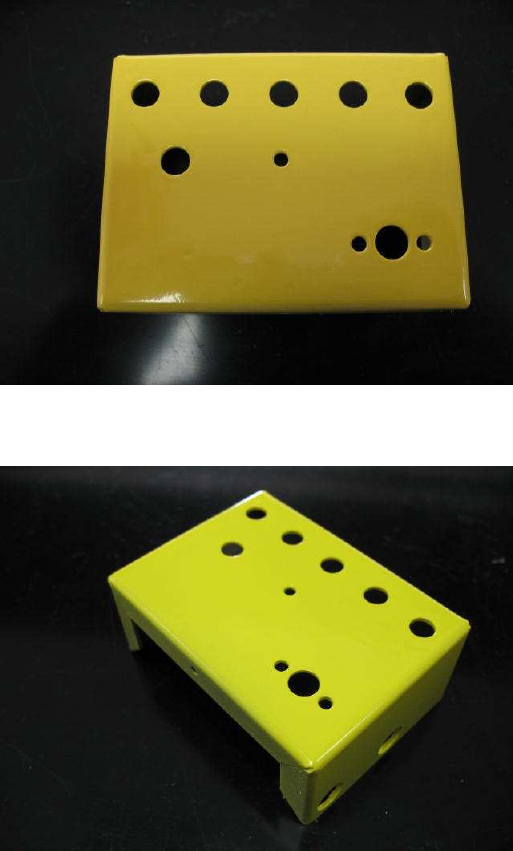

Figure 15 Case Top View

Figure 16 Another View of the Top of the Case

I then cut out the template for the top from the bmp file on the web page, sprayed glue on the

back, and then mounted it to the top. I used an exacto knife to trim around the holes.
